Surface grinding machine GS-126CV/CVs

It provides energy and space-saving with ease of use.

KURODA has released its largest surface grinding machine, capable of handling the increasing sizes of workpieces. Although the machine is large, KURODA sought to maintain the ease of use.

Catalogue download Inquiry about this product

Features Performance / Specifications Movie Introduction about related products

Features

Operability: Outstanding operability offering “easy set-up, easy viewing and easy operation”

The utilization of a column style improves accessibility and operability.

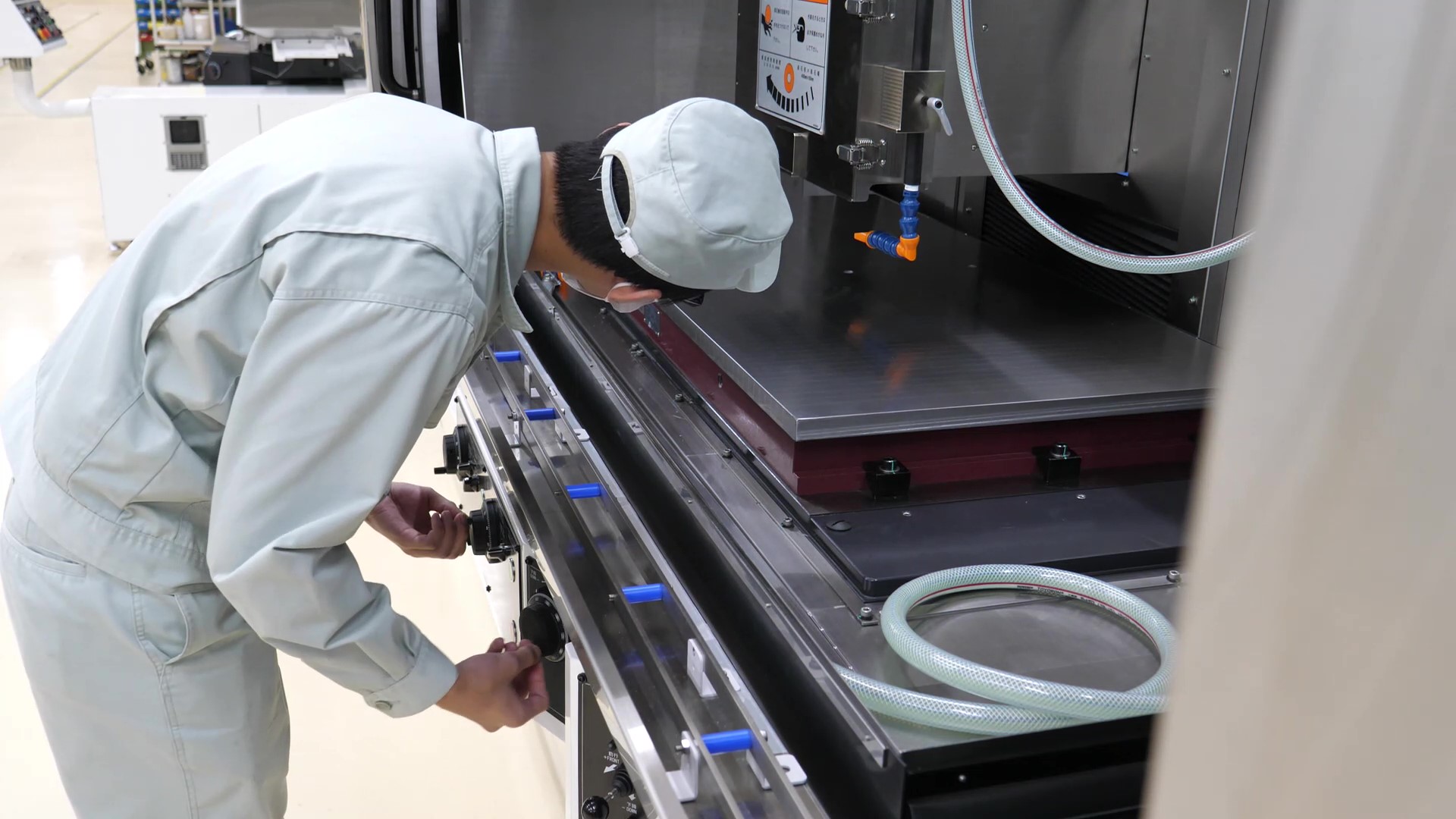

Operators can maintain a comfortable posture while looking into the machine and conducting machining work such as workpiece attaching and detaching.
By also widening the opening, an outstanding operability is realized even when grinding large workpieces.

Ecological performance: Environmentally friendly model to reduce the environmental loading and costs

The longitudinal feed of the machines utilizes a servo motor and KURODA’s in-house manufactured ball screw mechanism.
The power consumption is greatly reduced compared to hydraulic drive machines. A higher energy saving has been achieved than in previous machines.
The motorization of the longitudinal feed has suppressed heat variations in the machine body, maintaining the dimensional accuracy of the machine and the workpiece at a high level.
As hydraulic-related running costs are not required, this results in large cost reductions.

Customization: Support for the diversification of customer needs using various application

To realize a dramatic improvement in grinding efficiency: Ultra-fine bubbles

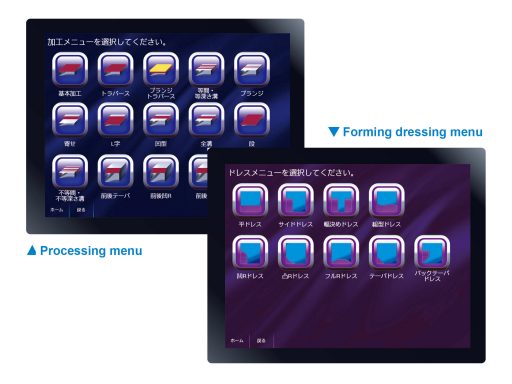

To simplify the grinding of various shapes and dressing: Interactive operation software “KURODA GS-SmartTouch“
Automation features：
- Auto approach “GS-SmartContact”
- An optimization function for automatically dressing grinding wheels “GS-SmartDress”
- On machine measurement system

Performance / Specifications

	Unit	GS-126CV(s)
Standard magnetic chuck size	mm	1200x600x100
Max.mass of workpiece	kg	1500
Longitudinal feed rate	m/min	0～40
Saddle cross feed	mm/min	2000
Vertcal feed speed	mm/min	2000
砥石（Wheel dimention(D x W xB)	mm	φ405x38xφ127
Spindle motor	kW	5.5
Dimention of the machine (W x L x H)	mm	4220x3070x2280
Machine net weight	kg	7000
