NEW: Precision forming grinding machine " GS-45V "
Suitable machine for easy operation, energy saving, and versatile items
Energy-saving, space-saving, easy to use. The best forming surface grinding machine for fine size workpiece.
Data Download
Features

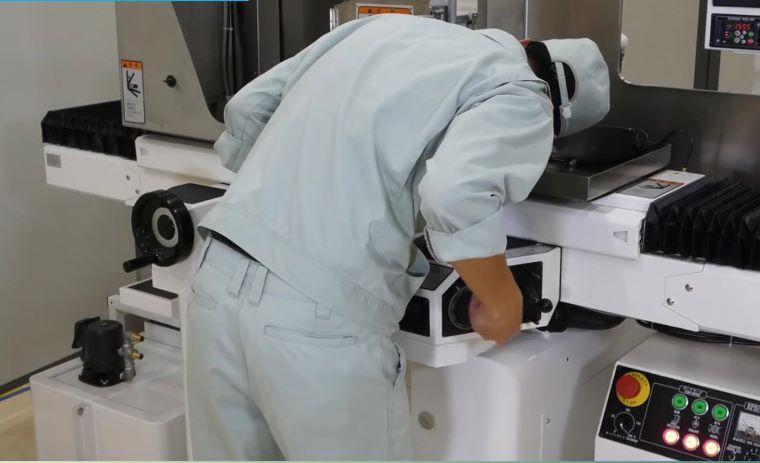

Operability
Manual grinding is easy to operate, and you can set full automatic operation with ease. The layout of operation switches, handles, and a touch panel possesses excellent operability and visibility.
Energy saving
AC servo motor is used for longitudinal feed. Machine body size was reduced by 40% and energy consumptuin was also reduced by 60% compared to our previous model. Non-hydraulic system contributes to lesser burden on the environment and realized more easy maintenance.
Customization
We offer various options such as interactive operation software "GS-SmartTouchTM" which provides a variety of processing and dressing in simple operation , On-machine measuring system, and ultra-fine bubbles that dramatically improve the processing efficiency.
Performance / Specifications
| Unit | GS-45V/VR | GS-45Vs/VRs | |
|---|---|---|---|
| Working surface of the table(L x W ) | mm | 500×150 | |
| MAX. traverse of the table (long x Cross ) |
mm | 580×200 | |
| Distance from table top surface to bottom surface of wheel | mm | 40 ～ 390 | |
| Standard magnetic chuck size（L×W×H） | mm |
Flat typ：electromagnetic 450×150×70 Tilting type：electromagnetic 380×110×125 |
|
| Max.mass of workpiece | kg | 70 | |
| Longitudinal feed rate | m/min | 1～40 | |
| Saddle cross feed | mm |
Feed per revolution of handwheel: Feed per graduation of dial: |
|
| Cross auto infeed | mm | Step feed：0.1 ～ 50 Optional setting | |
| mm/min | Continuous feed rate：1～1000 | ||
| Vertcal feed speed | mm/min | 500 | |
| Wheel dimention(D x W x B) | mm | φ180×6～25×31.75 | |
| Floor space required (W x L) | mm | 2040×1480 | |
| Dimention of the machine (W x L x H) | mm | 2040x1280x1950 | |
| Machine net weight | kg | 1600 | |
