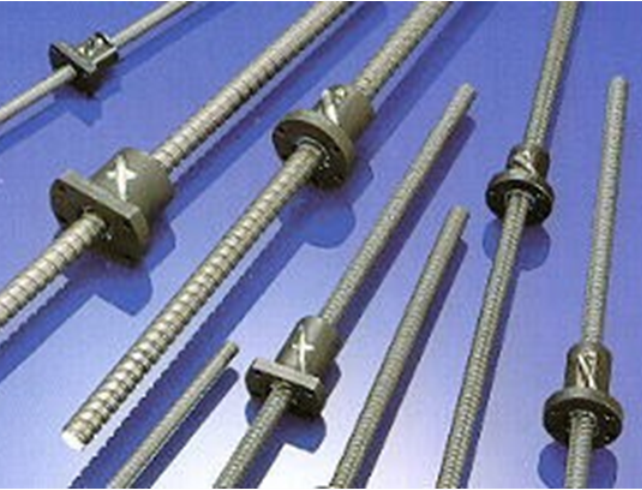

GW series (Grade C7) / GY series (Grade C10)

For Conveyance, wide variation rolled ball screw

Data Download

Features

Various shaft diameters and leads are available for your selection

An optimal size can be selected from a variety of shaft diameters and leads, eliminating unnecessary compromise in size selection.

Selection based on nut type appropriate for mounting area is available

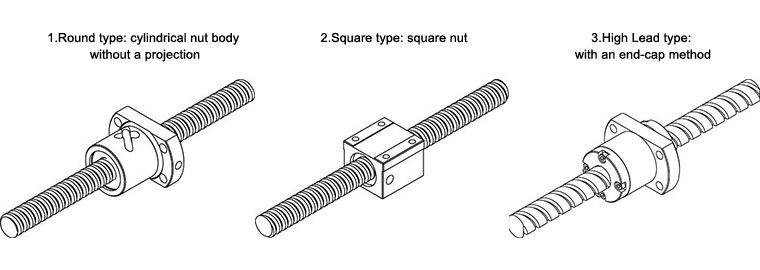

3 types of nut (round, square and High-Lead types) are available for your selection.

Performance / Specifications

GW SeriesGY Series
Shaft diameter 8 ~ 25mm 8 ~ 40mm
Lead 2 ~ 40mm
Accuracy grade Grade C7 Grade C10 C10
Nut combination Nut combination
Nut type round, square and High-Lead types

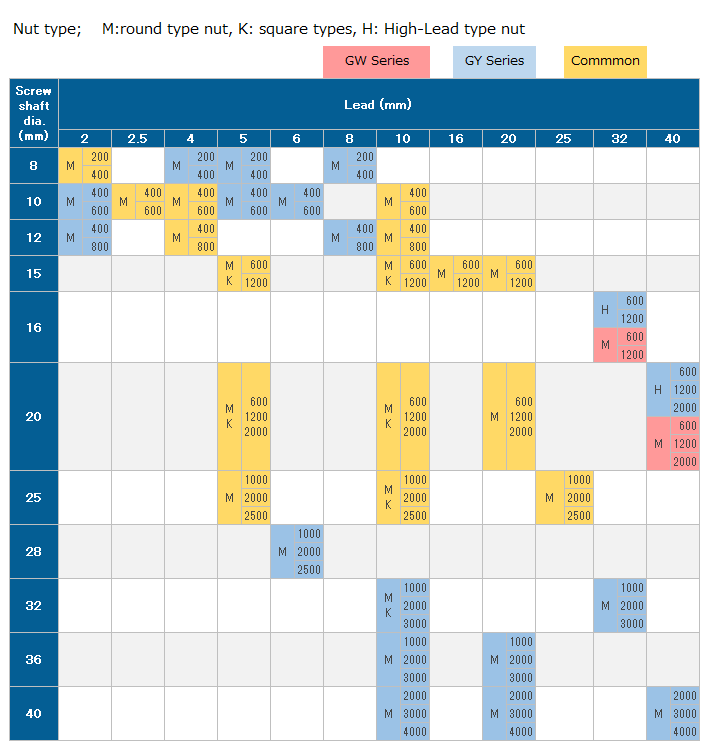

Shaft diameter and Lead combinations
