NEW: Bidirectional Actuator

Realizes Symmetrical Back-and-Forth Motion

By simultaneously using left and right screw threads in the actuator`s drive component, symmetrical back-and-forth motion is achieved.
Enables simplified, compact design by performing both the opening and closing functions of a gripping mechanism with a single actuator.

Features

Enables design regardless of mounting posture.

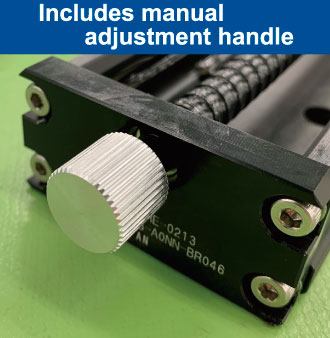

Equipped with manual adjustment handle.

A manual adjustment handle is provided for convenient screw shaft rotation. It can be used to check the position and/or operation of the slide block during equipment assembly ect.

Performance / Specifications

Model No.Maximum Stroke

Repeated Positioning Accuracy
(mm)

⊚:Standard Product

♦:Custom Product

SE2305B-250B-****-*S

20

±0.010

SE2305B-300B-****-*S

70

SE3005B-400Z-****-*S

100

SG2605B-300Z-****-*S

70

±0.005

SG3310B-400Z-****-*S

100

Grease: KURODA S Grease
