NEW: Hydraulic tool for large size workpiece

You can realize high precision clamping for large work pieces.

High precision accuracy is available for large size workpiece.It's realized clamping wide range size for φ6~φ250. High quality hydraulic tool is available made by KURODA.

Data Download


Even a large diameter with an expansion part diameter of φ100 or more can be clamped with high accuracy.

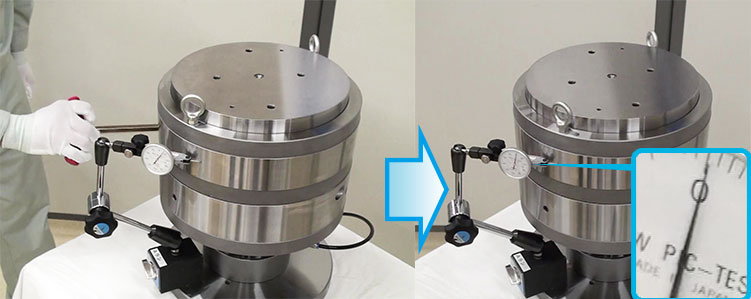

It's possible to clamp more than φ100 under the condition total run-out accuracy 3μm.
Even if hydraulic tool expand/shurink, repeatability accuracy is very stable. Total highly run-out accuracy is available.

Exterior configuration
