Support unit for small-sized factory automation equipment
Wide variety of sizes
As a support unit for ball screws for conveyance, products of this series are available for use with ball screw diameters φ8, 10, 12, and 15.
Compact and easy to mount
Designed compact considering the space around the mounting area, the support unit can be mounted without any preparation as the radial bearing inside the unit is already appropriately preloaded.
Looseness preventive function
Mounting can be performed easily and accurately by using the special lock nut for bearing with built-in looseness preventive function.
Delivers stable rotational precision since an appropriate amount of grease is enclosed inside the bearing.
Penetration of contaminants is prevented by seals on both ends of the bearing.
Short delivery time and reasonable price
Can be delivered immediately since they are normally in stock.

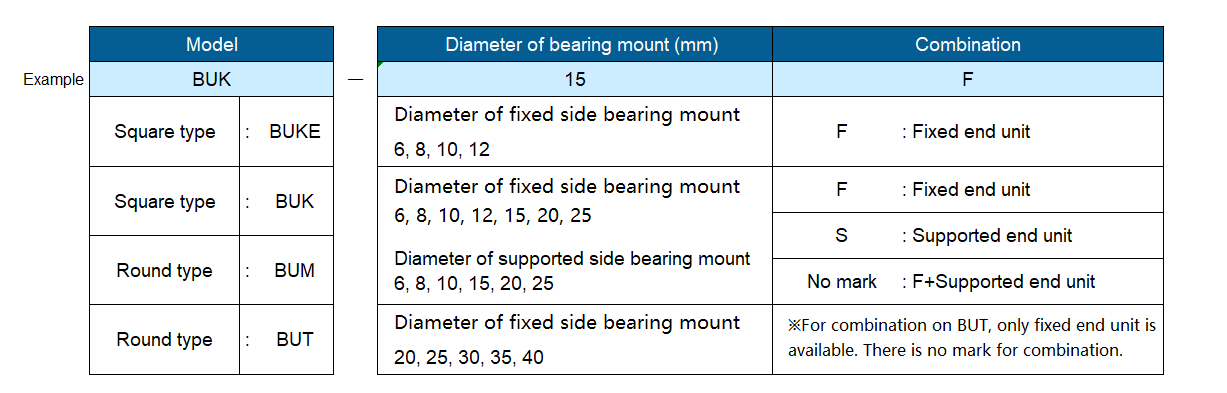

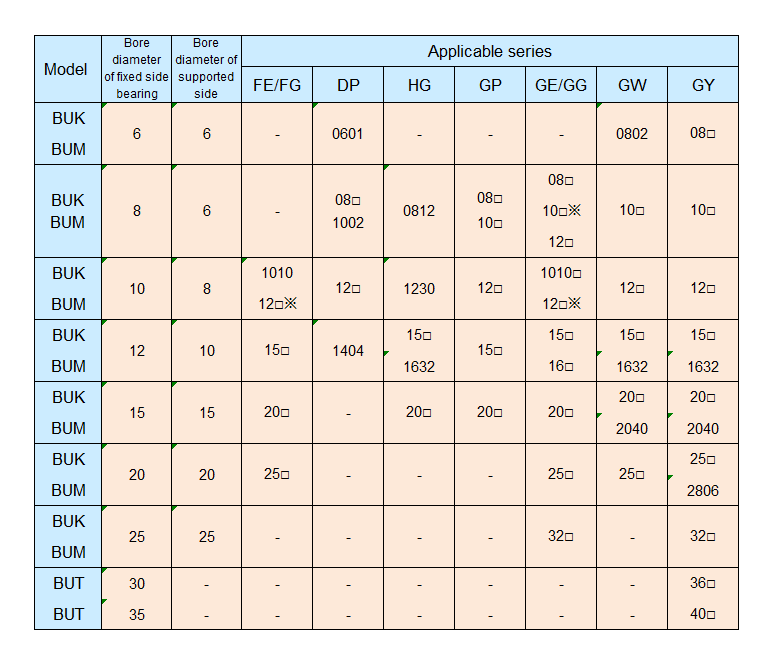

Performance / Specifications
