Deflector method ball screws D series
Compact, for precision positioning
With the industry’s smallest nut dimensions, these ball screws allow for more compact machines and equipment that require precision small-pitch feeding.
Features
Industry’s smallest, compact nut dimensions
The industry’s smallest nut dimensions were achieved by using an improved ball circulation system called deflector method, which allows for minimal nut dimensions.
Ideal for precision small-pitch feeding machines and equipment
With a lead of 1 to 10 mm, these ball screws are well suited for machines and equipment that require precision small-pitch feeding and positioning.
Exterior configuration
Standard Ground Ball Screws / DP Series: Accuracy grade C3
The screw shaft fixed end is finished to the type recommended by KURODA. When using, the screw shaft supported end may need additional machining in accordance with the conditions of use.
Performance / Specifications
| Shaft diameter | Φ6 to Φ50mm |
|---|---|
| Lead | 1 to 10mm |
| Accuracy grade | C0 to C7 grades(C0 to C5 grades for ball screws with integral nut) |
| Nut type | single nut, integral nut |
| Recirculation system | deflector method |

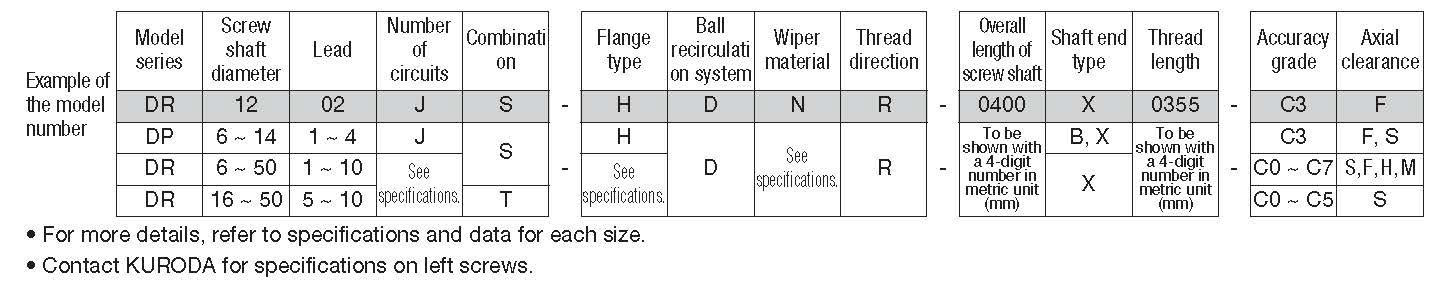

Ordering Number
